ITEM SOLD BY THE LINEAR METER

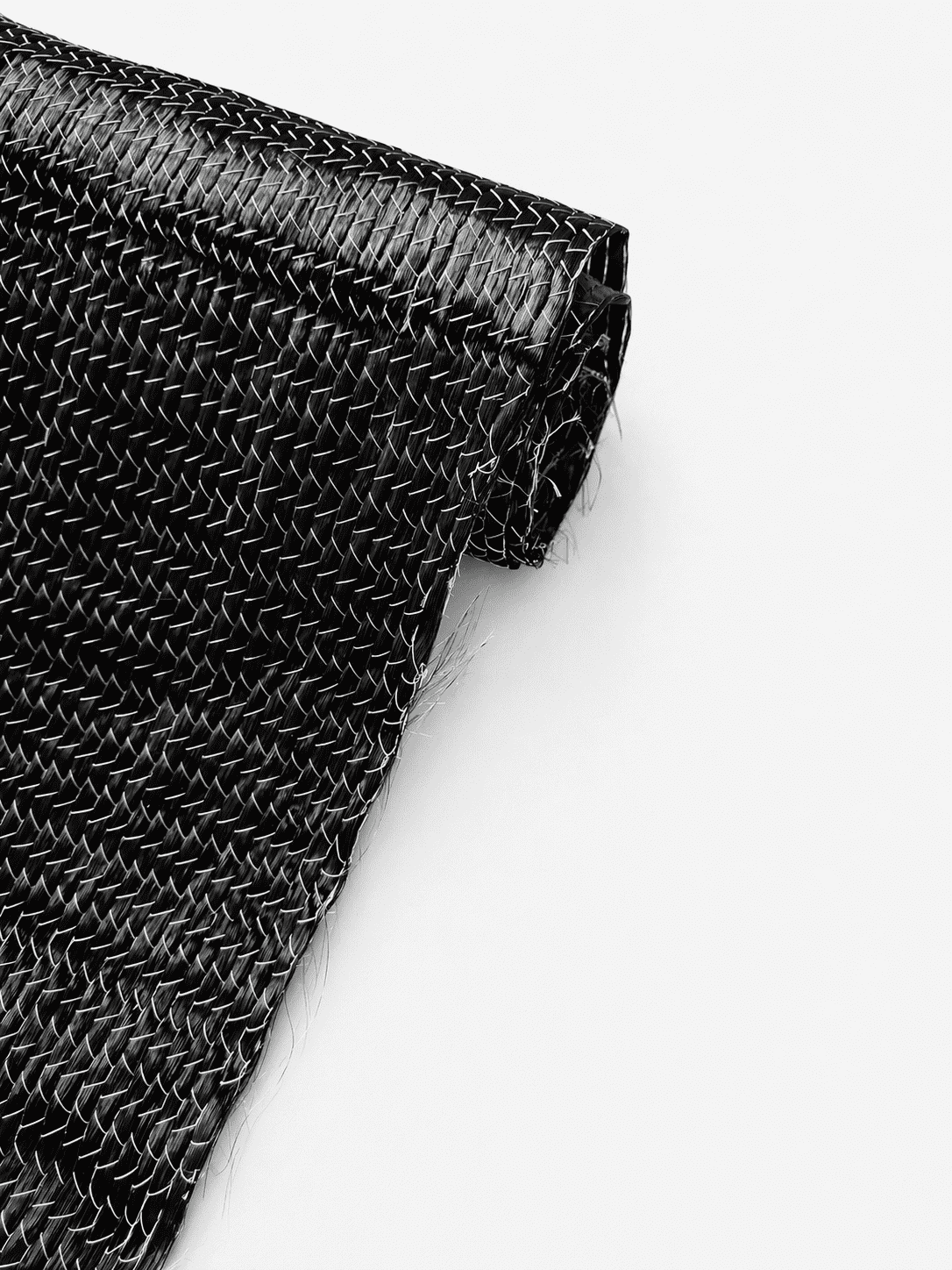

UNIDIRECTIONAL (UD) CARBON FIBER – 300 g/m² – PANEX® 35
High-strength carbon fiber composite reinforcement PANEX® 35, in unidirectional form (UD), intended for applications requiring maximum resistance in a main axis.
PRODUCT DESCRIPTION
Unidirectional sheet composed of carbon fibers aligned in a single direction and held together by a lightweight binding thread.
This type of reinforcement is designed to optimize mechanical performance along the fiber axis (0°).
TECHNICAL SPECIFICATIONS
- Fiber: Carbon PANEX® 35 (High Resistance – HS)
- Orientation: Unidirectional (0°)
- Weight: 300 g/m²
- Width: 320 – 330 mm
- Packaging: linear meter
MECHANICAL PROPERTIES (FIBER)
- Tensile strength: 4137 MPa
- Traction modulus: 242 GPa
- Density: 1.81 g/cm³
- Filament diameter: 7.2 µm
PROPERTIES
- Maximum resistance along the fiber axis
- Very high stiffness-to-weight ratio
- Ideal for directional structural reinforcements
- Low fiber waviness (optimized performance)
- Good impregnation with epoxy resins
IMPLEMENTATION
Compatible processes:
- Contact layering
- Vacuum infusion
- Vacuum/compression molding
Recommended resins:
APPLICATIONS
- Snowboards / skis (longitudinal reinforcement)
- Composite structural parts
- Flexural reinforcements
- Boating, sports, prototyping
TERMS OF SALE
- Delivered width: 320 to 330 mm
- Cut by the linear meter
- Enter a precise length in meters (e.g., 1.8 = 1.80 m)
OBSERVATIONS
- Dry product (not pre-impregnated)
- Fiber direction to be respected during implementation
- The final performance depends on the process and the resin used.
TECHNICAL ADVICE – ASSOCIATION WITH LIGHTWEIGHT NUCLEI
The use of UD carbon is particularly suited to low density cores (paulownia, balsa, mixed bamboo), in order to provide rigidity and responsiveness without penalizing the weight.
However, a 100 % carbon laminate can generate a behavior that is too rigid and unforgiving.
We recommend hybrid constructions:
Option 1 – Carbon + glass
- UD carbon 300 g/m²
- Biax carbon ±45° 200 g/m²
- Glass veil
→ Light, responsive structure, with increased tolerance.
Option 2 – Carbon + flax (recommended)
- UD carbon 300 g/m²
- Biax linen ±45° ~300–350 g/m²
→ Better cushioning, more progressive behavior, optimized snow feel.
APPROACH
The choice of reinforcements depends on:
- of the program (hiking, freeride, piste)
- the rider's weight
- desired sensations
A combination of materials allows for an optimal balance between weight, performance and comfort.
